The green smiling face marks a devicethat is communicating and correctly configured—no action is required.

绿色笑脸图标，表示此装置通讯和功能配置均正确。-----不需调整。

The yellow face marks a device thatis communicating but incorrectly configured or not all of its information hasbeen confirmed. Click on Bind and it should verify the device, and turn theicon into a green smiling face.

黄色脸图标，表示此装置通讯正常，但功能配置不正确或其全部信息没有全部被确认。检查确认此装置功能并进行绑定，使其转成绿色笑脸图标。

The redfrowning face marks a necessary device (as it is set in the Configuration View)that is un-configured or is not communicating. There are several reasons why adevice may not be found:

红色皱眉脸图标，表示此装置是机组功能所需要的装置（机组配置的某项功能需要此装置），但无法确认功能配置或无法通讯。以下为引起的原因：

·          The device has been added tothe network bus, but not yet bound.

此装置已安装在控制网络总线上，但没有进行绑定。

·          The device configuration is notcorrect.

此装置配置不正确。

·          The device does not have poweror communications.

此装置没有电源或通讯。

·          The device has failed.

此装置损坏。

The red "X" marks a devicethat is communicating and configured for a function that either is not requiredor is duplicated by another device.

红色“X”图标，表示此装置通讯正常和功能配置正确。但此装置不是机组功能不需要，就是与另一个装置重复。

The red "S" symbol marks adevice that is past the end of the expected sequence.

红色“S”符号图标，表示此装置超过了机组预设序列。（编排序列见以下说明）

OrderingDevices in a Sequence（在序列中排序机组装置）

A reliable and efficient network musthave the expected number of devices in a consecutive sequence. Binding Viewhandles the sequence numbers automatically. In order to allow repeated attemptsto build a network image, the order is not adjusted to eliminate gaps until thesequence function is selected (refer to network functions).

一个可靠高效的网络，需要在一个连续的通讯序列中预设的装置数量。绑定界面中有自动排定机组装置通讯序列的功能，允许重新建造一个网络通讯结构。但直到在绑定界面中执行“排序键”(见下图)之前，机组预设序列不能改变。


The sequence is correct as shippedfrom the factory. If a device fails, it usually leaves a gap in the sequence.When an additional or replacement device is bound, it will fill a gap if anygaps remain. For that reason, it is not always necessary to use the sequencefunction. The sequence icon does not display if all the gaps have been filled

机组各装置序列在机组出厂前是已经正确预设的。如果机组某一装置损坏，机组网络通讯序列中将出现一个缺口。当添加或更换一个装置并绑定时，如果有缺口，将填充这个缺口。因此，一般不需要用排序功能。如果所有的的缺口都已经被填充，“排序键”将不显示。

The sequence function is availablehere because Binding View is allowed to automatically manage the sequence asdevices are added and removed.

排序功能是有可能用到的。当增加或减除某个装置时，绑定界面内的排序功能允许使用，自动管理机组网络通讯序列。

Extra devices (which require a longersequence than expected) also cause the sequence icon to display. Devices thatare last in the sequence and past the expected range are individually markedwith the sequence icon.  sequencingdevices, removing extra devices is required to provide a reliable and efficientnetwork.

增加机组装置将会引起红色“S”排序图标显示。所有超出机组预设序列的装置，将被用红色“S”分别标示。除了为机组新增的装置重新排序外，排序功能还是为了提供一个可靠高效的通讯网络。

The blue "?" symbol isshown on the information buttons.

蓝色“？”符号图标，表示信息按钮。

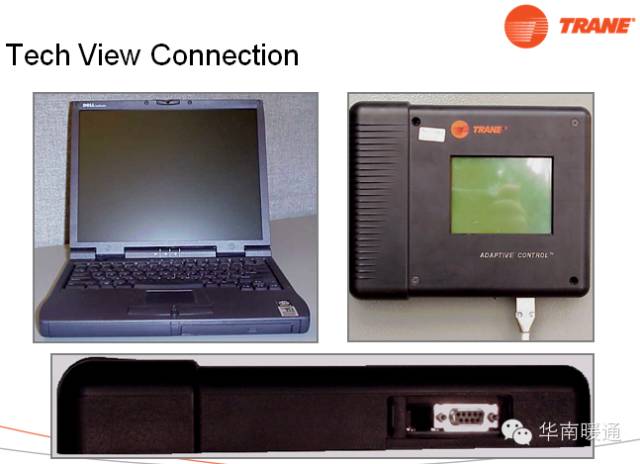

Clicking on the information buttondisplays the Read Device Information window and asks, "Is the desireddevice alone selected?" You must select the device with the south end of amagnet before clicking OK (refer to selecting a device with a magnet). TechViewwill read from the selected device and display the device information with alldata except the variable assignments

点击信息按钮，将显示CH530读取某装置的信息对话窗，同时出现提示“Is the desired device alone selected?是否单独选择所需装置？”

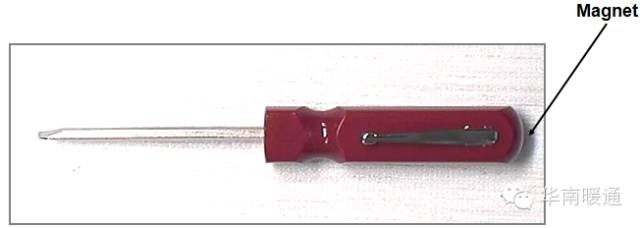

在点击OK前，必须使用专用工具（S极磁性螺丝刀）选择正确装置。

Techview将读取所选择装置并显示装置的所用信息，除装置可变分配信息

（如HardwareNumber Extension; Software Revision; Date Code ）。
